GYTC8S Overhead Self Supporting Optical Fiber Cable 24 48 Core

GYTC8S Overhead Self Supporting 24 Or 48 Core Single Mode Outdoor Optical Fiber Cable

Features
• The steel wire strand has extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs

• Optical cable has good mechanical properties and temperature characteristics

• The loose tube material itself has good hydrolysis resistance and high strength

• The tube is filled with special grease to protect the optical fiber critically

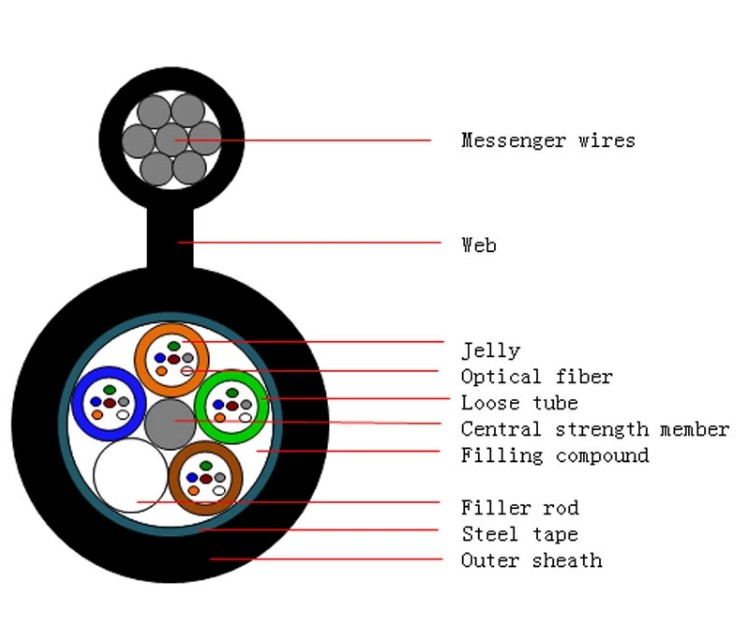

• Use the following measures to ensure the waterproof performance of the optical cable:

- Single steel wire center reinforcement core

- Loose tube filled with special waterproof compound

- Complete cable core filling

- Plastic coated aluminum tape (APL) moisture barrier

Technical parameter

Performance	Long-term	Short-term
Max.Tension(N)	3500	7000
Max.Crushing	300	1000
Resistance(N/100mm2)	30D(Dynamic)	15D(static)
Storage and operating temperature	-40℃ to +70℃

Optical Characteristics

		G.652D	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm		≤3.0 dB/km	≤3.0 dB/km
	@1300nm		≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km
	@1550nm	≤0.22 dB/km
Bandwidth (Class A)	@850nm		≥500 MHz·km	≥200 MHz·km
	@1300nm		≥1000 MHz·km	≥600 MHz·km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm

Application: overhead

Certification:

FAQ:

1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc

4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?

A:Yes. We supply OEM service.

7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
