Self Supporting G652D Outdoor FTTH Fiber Optic Drop Cable

Name: Self Supporting G652D Outdoor FTTH Fiber Optic Drop Cable
Brand: JQ/OEM
Price: 1 USD

Quality Self Supporting G652D Outdoor FTTH Fiber Optic Drop Cable wholesale

Brand Name : JQ/OEM

Model Number : GJYXCH/GJYXFCH

Certification : ISO9001

Place of Origin : Guangzhou,China

MOQ : 1KM

Payment Terms : L/C, T/T, Western Union

Supply Ability : 4500KM Per Month

Delivery Time : 5-8 work days

Packaging Details : wooden package or cartoon box

Fiber count : 1/2/4 Core

Jacket Color : Black,White

Jacket Material : LSZH/PVC/PE

Attenuation(max) : ≤0.36dB /KM(1310nm)

Strength member : Steel Messenger Wire/FRP

Fiber : YOFC,or as request

Weight : 20kgs/km

Length : 1km or 2km

Fiber type : G657A1/A2/G652D

Application : FTTH,Network

Contact Now

Self-Supporting Steel Strand Outdoor FTTH Fiber Optic Drop Cable

Product Description

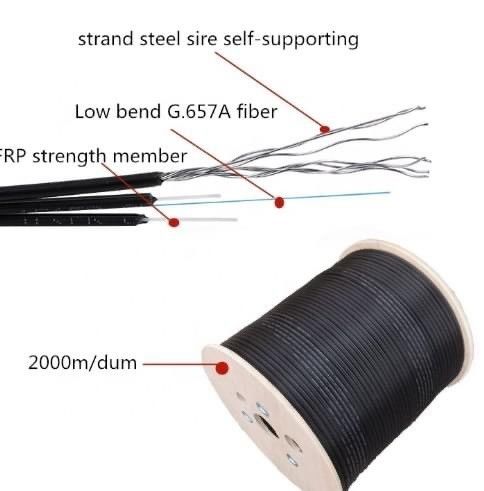

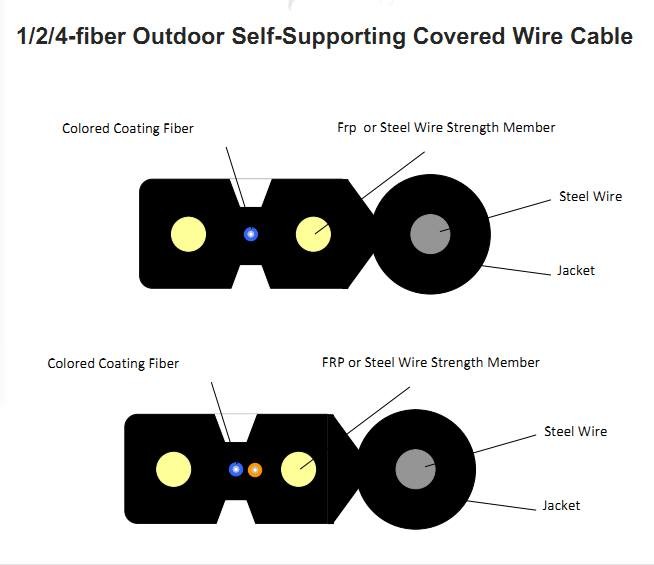

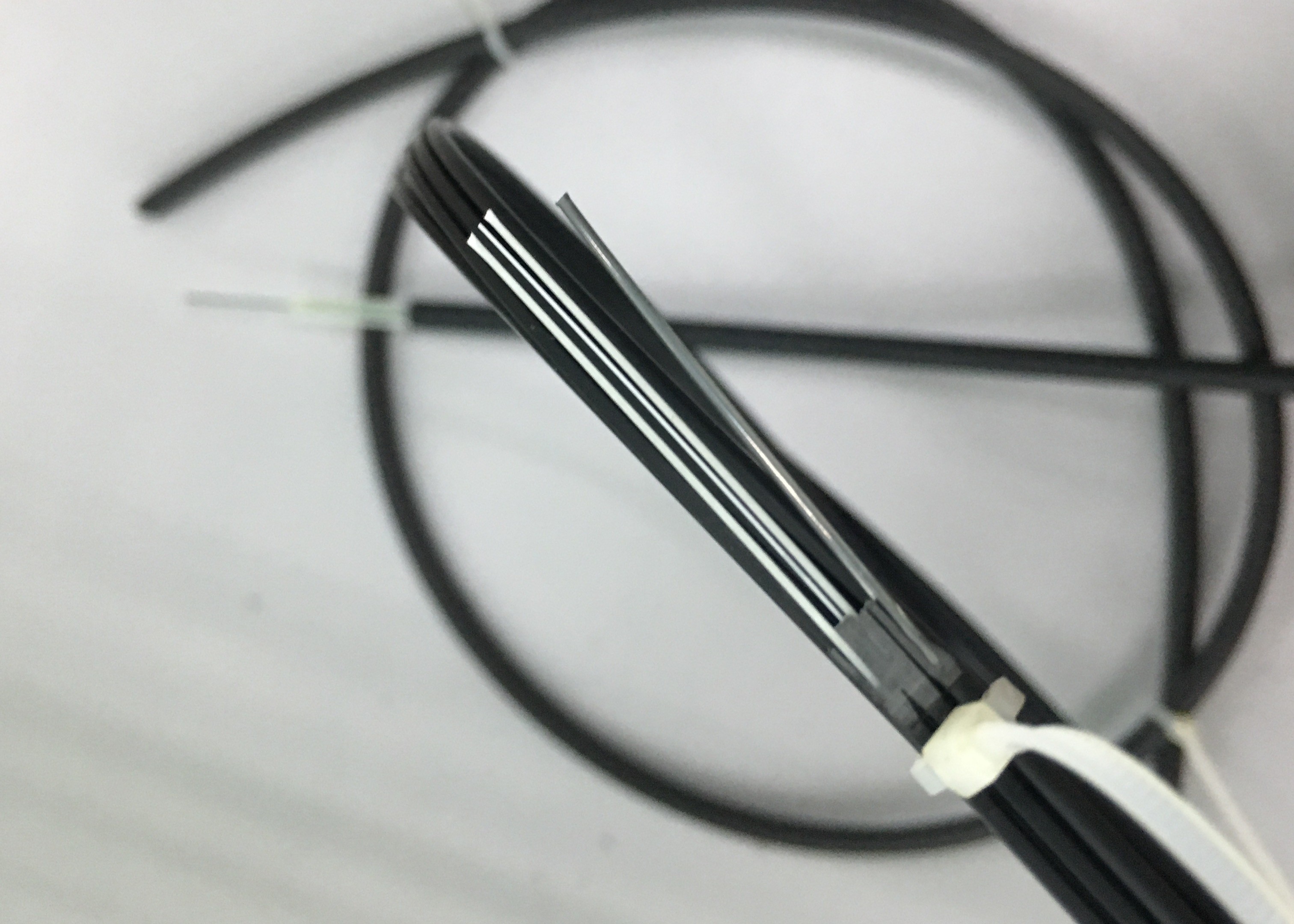

The structure is1-4 colored fibers colored fiber combined with two FRP (or steel wires),which can protect the fiber inside by providing sufficient tensile strength and good resistance to lateral crushing.Drop cable is designed for last-one-mile in the FTTx network, enhancing the accessibility to the fiber and maximizes the installation work ability.High tensile of the diameter 1.0mm steel wire meet the requirement of self-supporting and reducing the installation cost.Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber.Novel flute design, easily strip and splice, simplify the installation and maintenance.

Self Supporting G652D Outdoor FTTH Fiber Optic Drop Cable

Features

G657A1 FTTH fiber optical cable
Self-support (LSZH) ,PE,PVC outer sheath drop cable

Outdoor ftth Self-supporting drop cable(GJYXCH/GJYXFCH)

FRP/KFRP or steel wire strength element

Low smoke zero halogen and flame retardant sheath
Outer diameter(2.0±0.2)x(5.0±0.2)mm
Compliant with Telcordia GR-326-CORE specification

Product detail

Self Supporting G652D Outdoor FTTH Fiber Optic Drop Cable

Fiber Parameters

No.

Items

Unit

Specification

G.657A1

Mode Field Diameter

1310nm

μm

9.0±0.4

1550nm

μm

10.1±0.5

Cladding Diameter

124.8±0.7

Cladding Non-Circularity

≤0.7

Core-Cladding Concentricity Error

≤0.5

Coating Diameter

245±5

Coating Non-Circularity

≤6.0

Cladding-Coating Concentricity Error

μm

≤12.0

Cable Cutoff Wavelength

入cc≤1260

Attenuation(max.)

1310nm

dB/km

≤0.35

1550nm

dB/km

≤0.21

Macro-Bending Loss

1turnx10mm

radius@1550nm

≤0.75

1turnx10mm

radius@1625nm

≤1.5

Technical parameters

Product Model	Fiber Count (core)	Cable Diameter(mm)	Cable Weight (kg/km)	Tensile Strength Long/Short Term(N)	Crush Resistance Long/ShortTerm(N)	Bending Radius Static/Dynamic
GJXH	1	(2.1+0.1)*(3.1+0.1)	10	1000/2200	200/1000	15/30
GJXH	2	(2.1+0.1)x(3.1+0.1)	10	1000/2200	200/1000	15/30
GJXH	4	(2.3+0.1)*(3.3+0.1)	12	1000/2200	200/1000	\|15/30
GJXFH	1	(2.1+0.1)x<(3.1+0.1)	9	800/1800	200/1000	15/30
GJXFH	2	(2.1+0.1)x(3.1+0.1)	9	800/1800	200/1000	15/30
GJXFH	4	(2.1+0.1)x(3.1+0.1)	11	800/1800	200/1000	15/30
GJYXCH	1	(2.1+0.1)*(5.1+0.1)	21	1500/2500	500/1300	15/30
GJYXCH	2	(2.1+0.1)*(5.1+0.1)	21	1500/2500	500/1300	\|15/30
GJYXCH	4	(2.1+0.1)x(5.1+0.1)	21	1500/2500	500/1300	15/30
GJYXFCH	1	(2.1+0.1)*(5.1+0.1)	20	1500/2500	500/1300	15/30
GJYXFCH	2	(2.1+0.1)x(5.1+0.1)	20	1500/2500	500/1300	15/30
GJYXFCH	4	(2.1+0.1)x(5.1+0.1)	20	1500/2500	500/1300	15/30

Application
Adopted to outdoor distribution.
As pigtail of communication equipment
Suitable for communication equipment.
Can be installed conveniently and perated simply

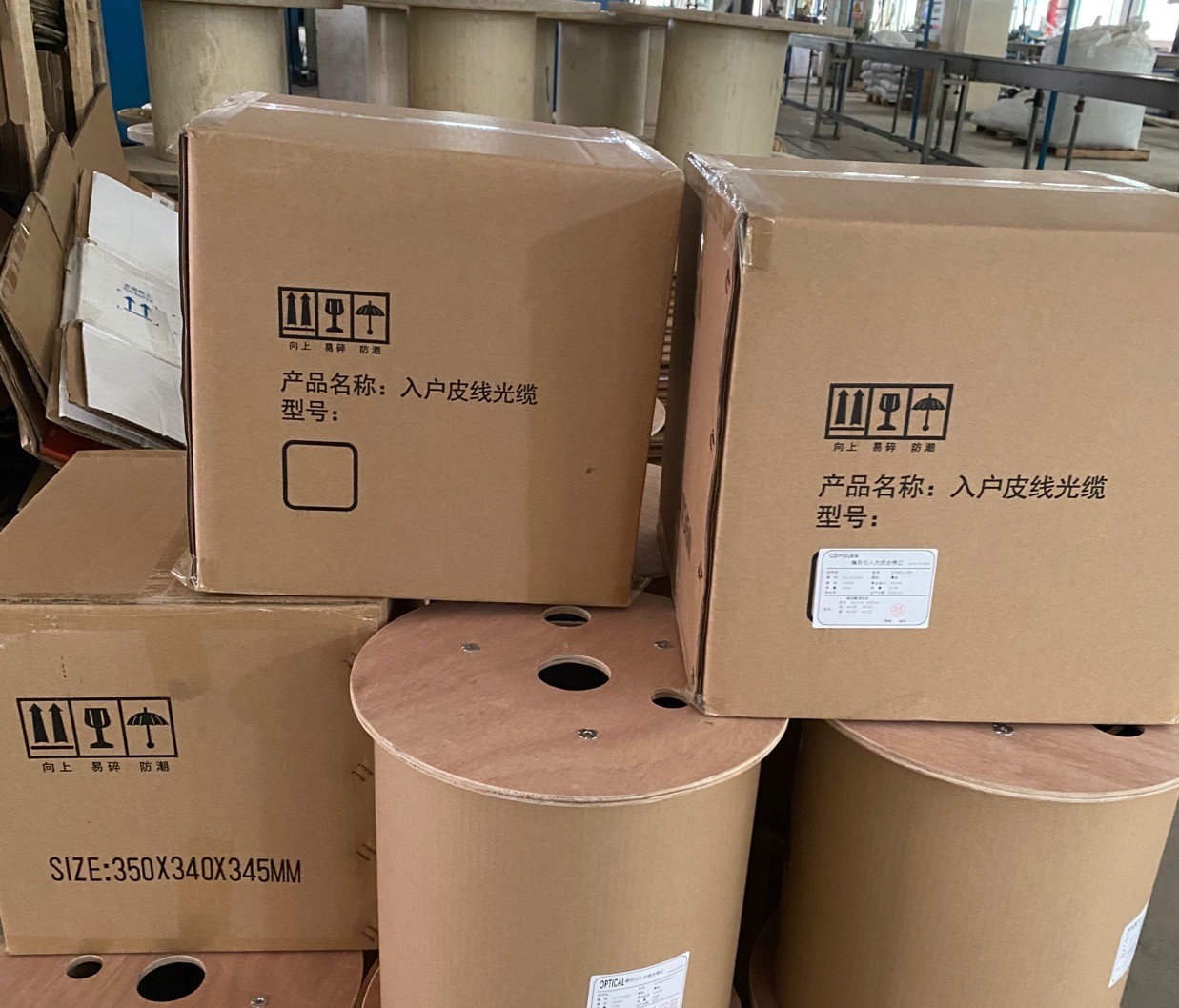

Package

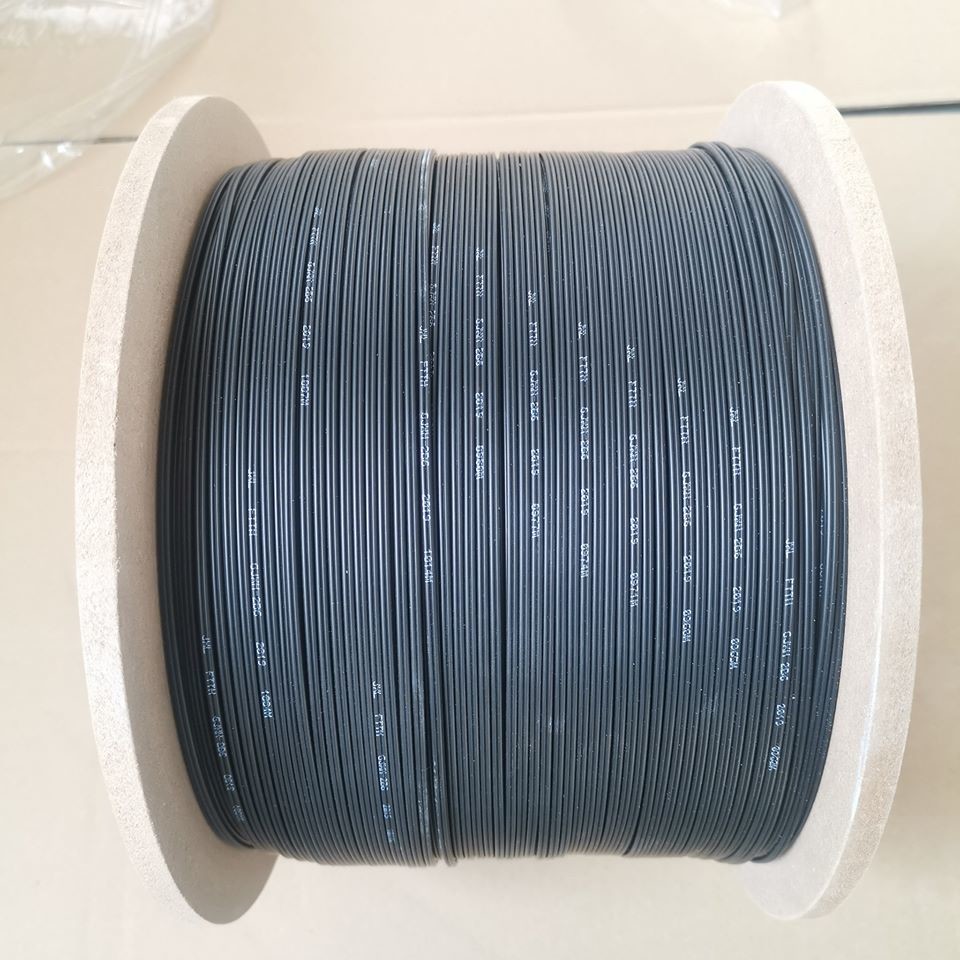

Nominal shipping length of the cable will be 1 or 2 km. Other length is also available if required by buyer.

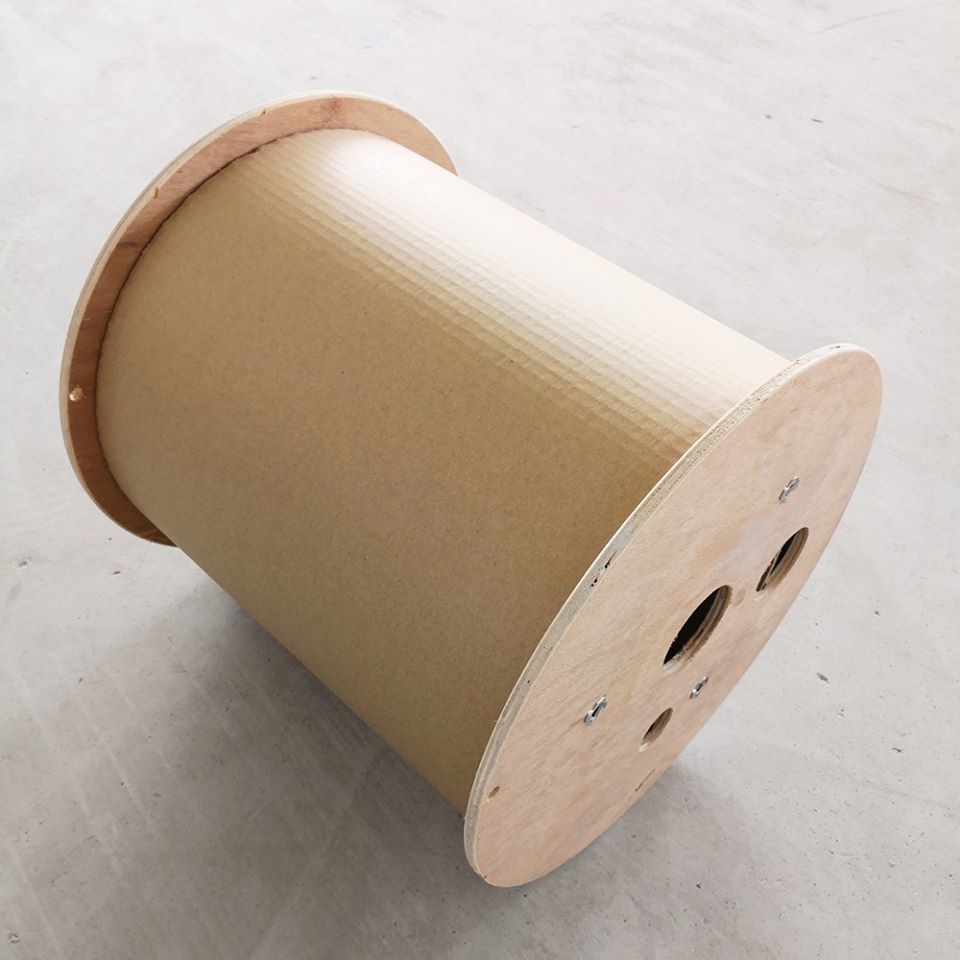

Each length of the cable will be wound on a separate strong wooden.one drum in a carton box
