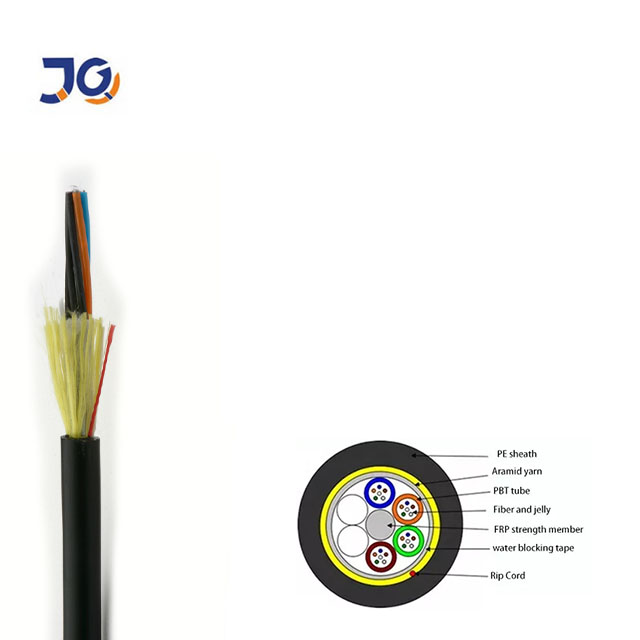

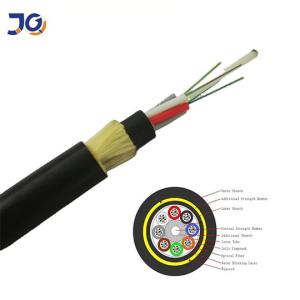

Span100/200/400m ADSS 12/24/48/96 hilos G652D antena exterior autosoporte ADSS cable de fibra optica
Cable Performance
| Item | Contents | Value |
| 6/12/24 | 48 | 72 | 96 |
| Structure | Type | 1+6 | 1+6 | 1+8 | 1+12 |
| Loose tube | Max Fiber counts/tube | 6 | 12 | 12 | 12 |
| Outer diameter (mm) | 1.9±0.1 | 2.2±0.1 | 2.2±0.1 | 2.2±0.1 |
| Central strength member | Material | FRP |
| Diameter (mm) | 1.4 | 1.6 | 2.0 | 3.5 |
| PE layer diameter (mm) | -- | -- | | |
| Peripheral strength member | Material | FRP |
| Sheath | Material | HDPE |
| Color | Black |
| Thickness (mm) | Nominal: 1.6 |
| Cable diameter(mm) Approx. | 9.8±0.2 | 10.0±0.2 | 11.8±0.3 | 13.8±0.5 |
| Cable weight(kg/km) Approx. | 128 | 131 | 148 | 152 |
Characteristics: 1.Can be installed without shutting off the power
2.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backbone
3.Large span lengths and the largest span is over 1000m
4.Good performance of tensile strength and temperature
5.The design life expectance is 25-30 years
Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa
Certifications:
FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China
2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free,just need to pay for the freight
3.Do you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001/CE/ROHS/FCC
6.What is your delivery time?
Usually 5-7 working days,It depends on order quantity
7.What is your fiber brand?
Corning,YOFC ,Fiberhome
8.What is your payment method?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements

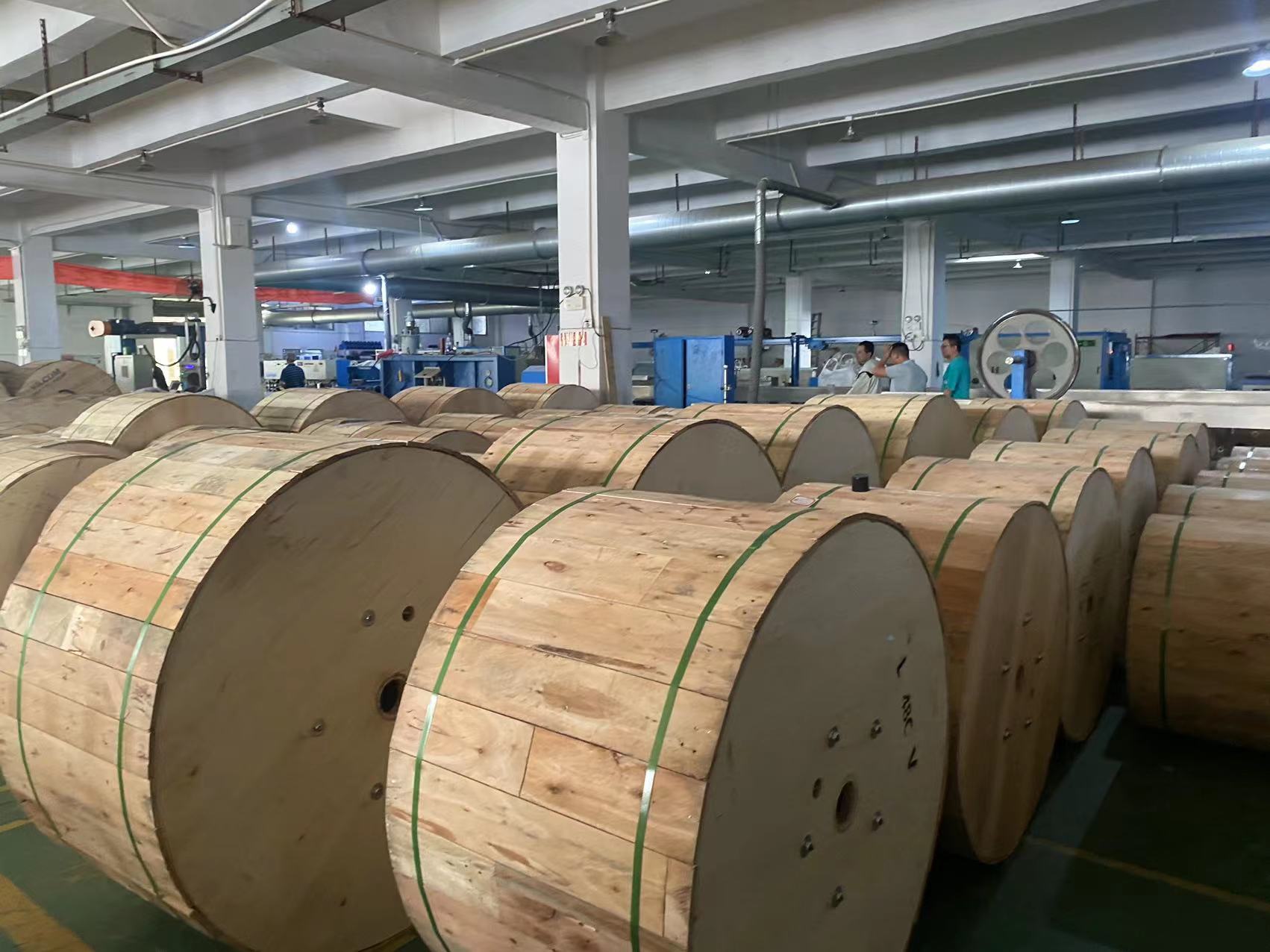

Welcome to visit our factory
Contact me at +8618998347595 to get free sample
Product Tags:
|
|
Span 100/200/400m ADSS 12/24/48/96 Cores G652D Outdoor Antenna Self Support ADSS Fiber Optic Cable Images
|
