Single Mode FTTH Indoor Outdoor Drop Optical Fiber Cable For Access Network Armoured Fiber Optic Drop Cable
Description:

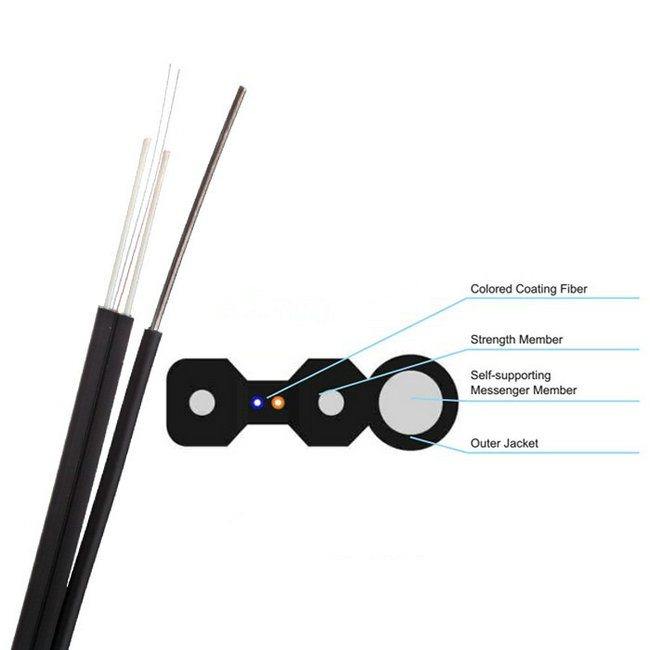

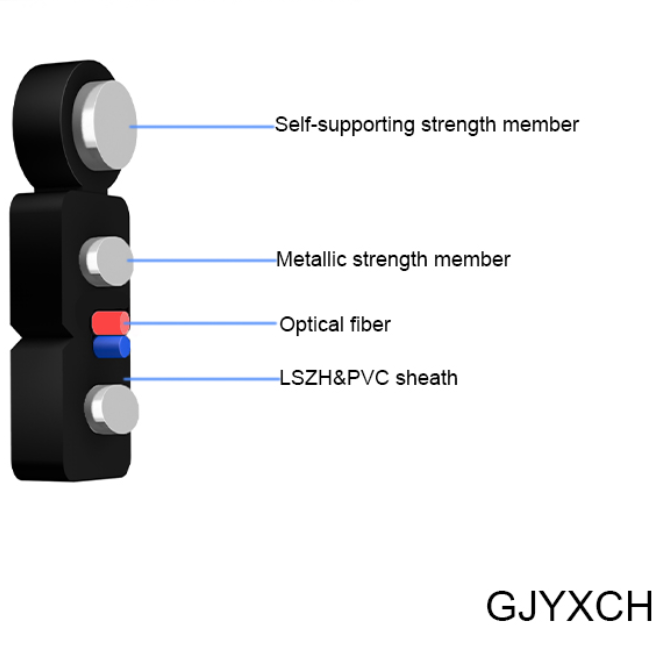

- The optical fiber unit is positioned in the center.
- Two parallel Fiber Reinforced Plastics (FRP) are placed at the twp sides.
- Then the cable is completed with a black or white color LSZH sheath.
Features:
- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
- Two parallel strength members ensure good performance of crush resistance to protect the fiber
- Simple structure, light weight and high practicability
- Novel flute design, easily strip and splice, simplify the installation and maintenance
- Low smoke, zero halogen and flame retardant sheath
- Simple structure, light weight and high practicability
Application:
- Used in indoor cabling, especially used for FTTH
- Used as access building cable

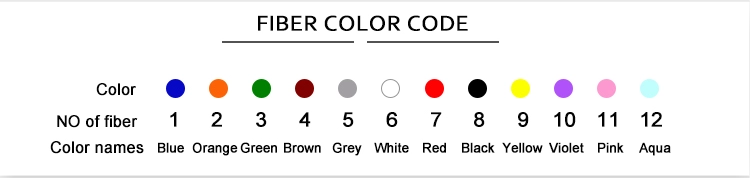

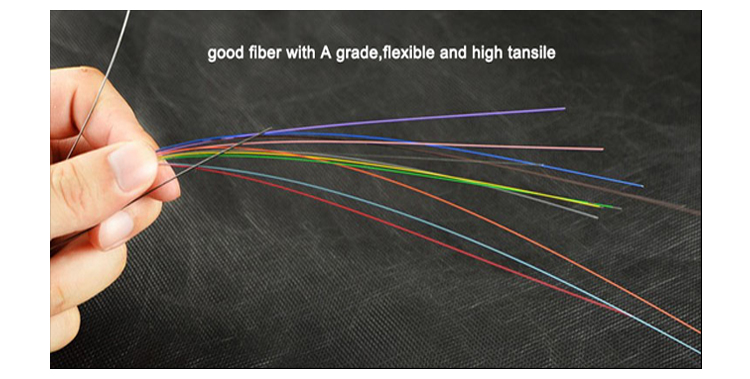

There are twelve fiber color code.They are A grade fiber.
Fiber Characteristic:
| Cable code | Fiber Count | Cable diameter mm | Cable weight Kg/km | Tensilse Strength Long/Short term N | Crush Resistance Long/Short term N | Bedning Radius Dynamic/Static mm |
| GJXFH-1 | 1 | (2.0±0.2)×(3.0±0.2) | 8 | 30/60 | 300/1000 | 15/30 |
| GJXFH-2 | 2 | (2.0±0.2)×(3.0±0.2) | 8.5 | 30/60 | 300/1000 | 15/30 |
| GJXFH-4 | 4 | (2.0±0.2)×(3.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
| GJXH-1 | 1 | (2.0±0.2)×(3.0±0.2) | 9 | 30/60 | 300/1000 | 15/30 |
| GJXH-2 | 2 | (2.0±0.2)×(3.0±0.2) | 9.5 | 30/60 | 300/1000 | 15/30 |
| GJXH-4 | 4 | (2.0±0.2)×(3.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |

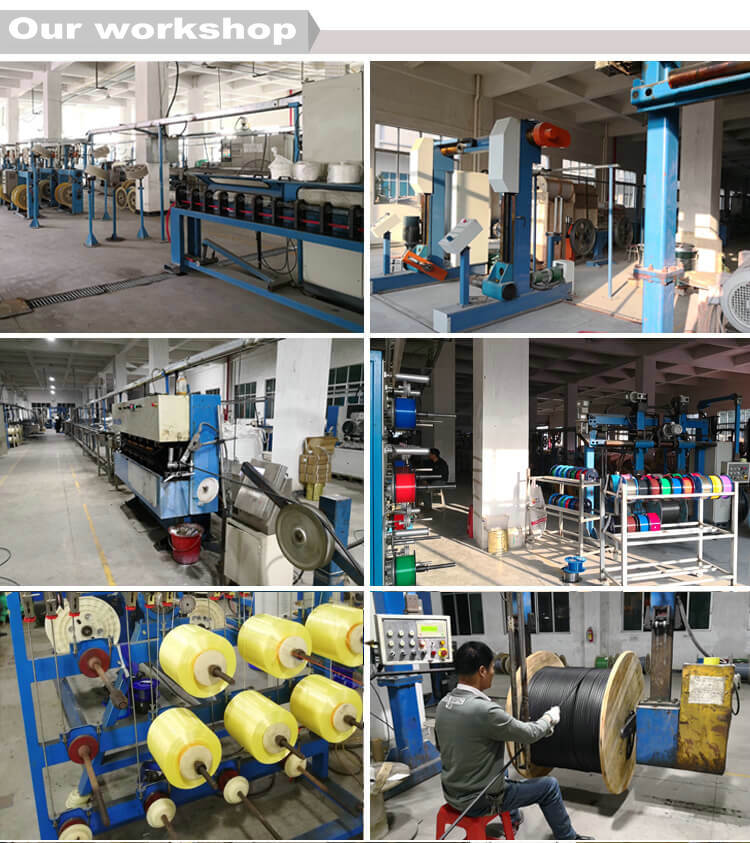

We are the factory, having quality control.
We privide you factory price.You can save costs, having good quality.
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed
We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351
FQA
Q1:Are you a factory or trade company?
We are a factory.
Q2:What is the MOQ?
The MOQ of Fiber Optic cable is 1km.
Q3:Which brand of fiber do you use?
YOFC,Fiberhome,etc
Q4:Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
Q5:What’s delivery time?
The general delivery time is 3-5 working days after order confirmed. It depends on the order quantity.
Q6.Can you supply customized products and logo?
Yes. We supply OEM service.
Q7.What’s your payment terms?
We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
